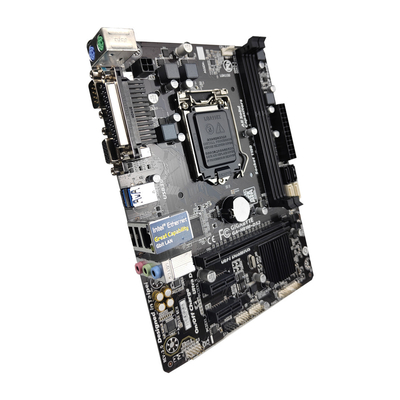

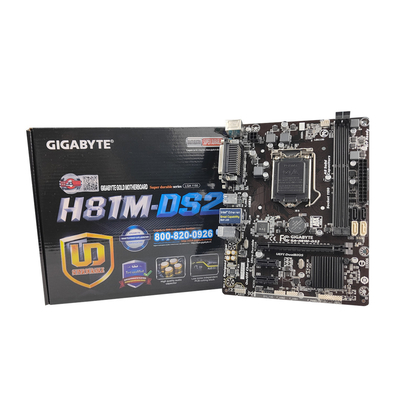

Gigabyte H81M DS2 LGA 1150 Intel PC Motherboard 16GB SATA SATA III SATA II

GIGABYTE H81M DS2 LGA 1150 Socket Supports Intel 4th Generation Core Processors

Introduction:

Supports 4th Generation Intel® Core™ processors

GIGABYTE Ultra Durable™ 4 Plus Technology

Audio Noise Guard with High Quality Audio Capacitors

GIGABYTE UEFI DualBIOS™

GIGABYTE On/Off Charge™ for USB devices

LAN with high ESD Protection

LPT, COM, D-SUB port on rear panel

All solid capacitors design

CPU:

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1150 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset:

Intel® H81 Express Chipset

Memory:

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics:

1 x D-Sub port, supporting a maximum resolution of 1920x1200

Maximum shared memory of 1 GB

Audio:

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN:

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface:

Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1)

2 x SATA 3Gb/s connectors (SATA2 2/3)

USB:

Chipset:

2 x USB 3.0/2.0 ports on the back panel

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

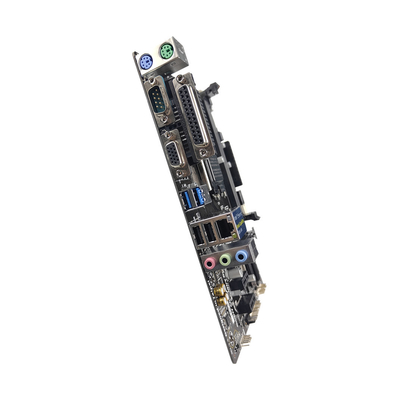

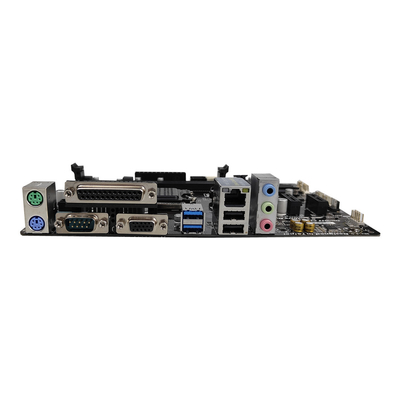

Back Panel Connectors:

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x parallel port

1 x serial port

1 x D-Sub port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller:

iTE® I/O Controller Chip

H/W Monitoring:

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:

2 x 32 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:

Support for Q-Flash

Support for Xpress Install

Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2

Support for ON/OFF Charge

Bundle Software:

Norton® Internet Security (OEM version)

Operating System:

Support for Windows 10/8.1/8/7

Form Factor:

Micro ATX Form Factor; 22.6cm x 17cm
