H81 Motherboard 16GB 1600MHz 1333MHz DDR3 CPU Support Core Pentium Xeon

Place of Origin China
Brand Name PCWINMAX
Certification CE FCC
Model Number H81
Minimum Order Quantity 2
Price 45.99~69.99$
Delivery Time 3~7 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 piece 5days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ports DVI, PS2, SATA, USB 2.0, VGA CPU Type Core I7/Core I5/Core I3/Pentium/Celeron
Maximum Ram Capacity 16 GB Application Desktop
Chipset Manufacturer Intel Socket Type LGA1150
Form Factor ATX Memory Type DDR3
Graphics Card Type Integrated Hard Drive Interface SATA
FSB / HT 1600/1333MHz
Highlight

h81 plus motherboard 1333MHz DDR3

,

h81 plus motherboard 1600MHz DDR3

,

motherboard 16GB Core Pentium Xeon

Leave a Message
Product Description

Desktop Mainboard H81 16GB 1600/1333MHz DDR3 CPU Support Core/Pentium/Xeon



Description:

The PCWINMAX LGA 1150 H81 Motherboard is a high-performance gaming motherboard designed for desktop PCs. It supports Intel 4th generation Core i3/i5/i7, Xeon E3/V3 series, Celeron G series, and Pentium G series processors, providing excellent compatibility for a wide range of processors. With its Intel LGA 1150 socket, this Micro ATX motherboard is powered by the H81 chipset, ensuring reliable performance.



Features:

- Intel LGA 1150 socket: Compatible with Intel 4th generation Core i3/i5/i7, Xeon E3/V3 series, Celeron G series, and Pentium G series processors, offering flexibility and compatibility for different processor options.
- Dual-channel DDR3 memory slots: Equipped with 2 DDR3 Non ECC desktop memory slots supporting effective frequencies of 1280/1333/1600/1866MHz. With a maximum capacity of 16GB, it enables smooth multitasking and efficient performance.
- Stable power supply: Designed with a three-phase power supply and all-solid capacitors, the motherboard ensures stable and reliable power delivery to each circuit for consistent performance.
- SATA M.2 interface: Supports the SATA M.2 (NGFF M.2) interface, with a transmission rate equivalent to the SATA 3.0 6Gbps interface. It utilizes the SATA channel and supports the AHCI protocol, providing efficient data transfer. Please note that it is not compatible with NVME M.2 SSDs.
- High-speed PCIE channel: The PCIe 2.0 protocol standard offers a high-speed X16 channel bandwidth of up to 8GB/s. It meets the demands of daily work and gaming, delivering a smooth and responsive experience.
- High-performance interface: Supports a Gigabit Ethernet interface and is compatible with VGA+HD dual output high-definition display interfaces. With the Realtek ALC662 audio chip and 4-channel sound card, it ensures exceptional audio quality for an immersive gaming or multimedia experience.



Parameter:

Processor (CPU)

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors

/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package.

Chipset
Intel® H81 Express Chipset
Memory

2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory,

Support for DDR3 1600/1333 MHz Memory Modules.

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Express x1 Slot
- 1 * PCI Slot

Storage

- 4 * Serial ATA 2.0 devices

- 1 * M.2

Internal I/O Connectors

- 1 * 24-pin ATX Power Connector

- 1 * 4-pin ATX 12V Power Connector

- 2 * USB Connector Support Additional 4 USB Ports

- 1 * LPC_DEBUG Connector

- 1 * Front Panel Audio Connector

- 1 * System Panel Connector

- 3 * SATA

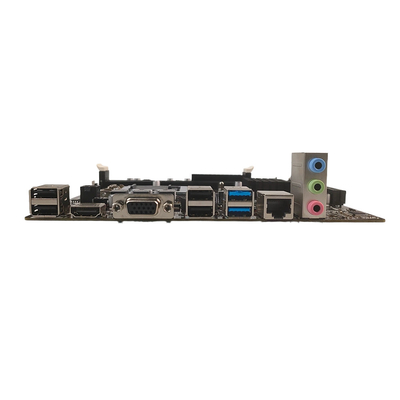

Back Panel I/O Ports

- 1 * PS/2 Mouse & Keyboard

- 1 * VGA

- 1 * HDIM

- 1 * LPT

- 2 * USB 3.0 and 2* USB 2.0

- 1 * LAN Port (RJ45)

- 3 * Audio Jacks

LAN
Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Form Factor
- Micro ATX (211*168 mm)
Accessories

- User Manual

- Drive CD

- I/O Panel



Quality Assurance:

To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
