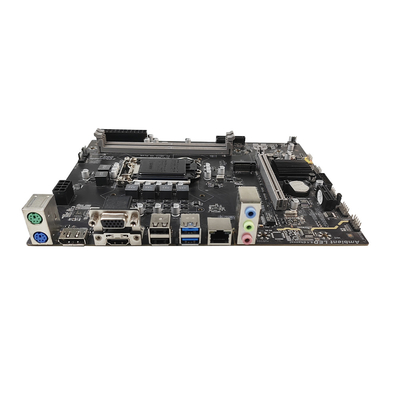

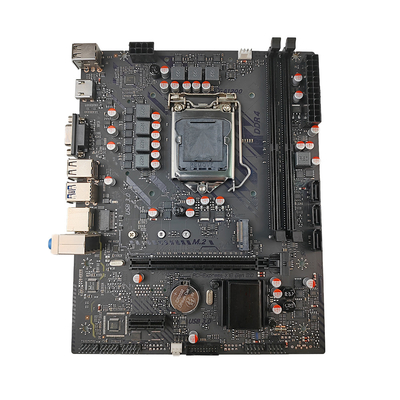

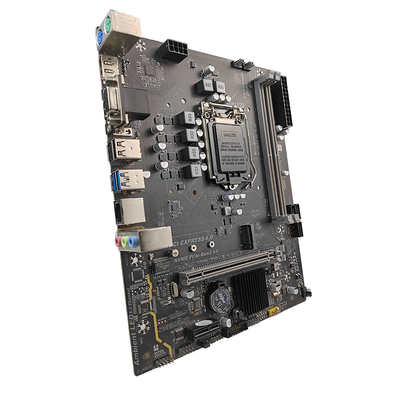

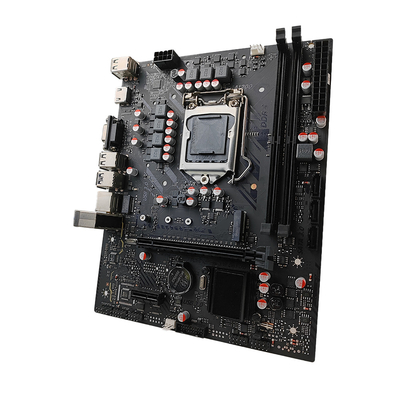

PCWINMAX H510-Pro LGA 1200 M.2 DDR4 Slot Original H510 Chipset Micro ATX Motherboard Support 10th 11th Gen Processors

Place of Origin China
Brand Name PCWINMAX
Certification CE FCC
Model Number H510
Minimum Order Quantity 2
Price 29.99~69.99$
Delivery Time 3~7 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100 piece 5days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ports SATA,PCI-Express X16 Maximum Ram Capacity 64GB
Application Desktop/home/workstation Chipset Manufacturer Intel
Socket Type LGA2011 Form Factor Micro-ATX
Memory Type 4 DDR4 Graphics Card Type Integrated-need CPU Support
Highlight

Micro ATX PCWINMAX H510-Pro

,

LGA 1200 PCWINMAX H510-Pro

,

11th Gen PCWINMAX H510-Pro

Leave a Message
Product Description

PCWINMAX H510-Pro LGA 1200 M.2 DDR4 Slot Original H510 Chipset Micro ATX Motherboard Support 10th 11th Gen Processors


Description:

The H510-Pro LGA1200 DDR4 Micro ATX motherboard is designed to support Intel's 10th and 11th Generation Core processors. With its compact Micro ATX form factor, it offers a balance between performance and space-saving design, making it suitable for a variety of desktop builds. The motherboard features DDR4 memory support, multiple expansion slots, and a range of connectivity options to meet everyday computing needs.


Features:

1.CPU Support: Compatible with Intel 10th and 11th Gen Core i3/i5/i7/i9, Pentium Gold, and Celeron processors using the LGA 1200 socket.

2.Memory: 2 x DDR4 DIMM slots supporting up to 64GB of memory at speeds up to 3200 MHz

3.Storage: Equipped with 1 x M.2 slot supporting PCIe 3.0 and SATA SSDs, and 3 x SATA III 6Gb/s ports for additional storage devices.

4.Expansion Slots: 1 x PCIe 4.0 x16 slot for graphics cards and 1 x PCIe 3.0 x1 slot for other expansion cards.

5.Graphics Output: Supports integrated graphics with outputs including HD and VGA.

6.Audio: 7.1-channel high-definition audio powered by the Realtek ALC897 codec.

7.USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for connecting peripherals and devices.


Parameter:

CPU LGA1200
Chipset H510 Express Chipset
Memory

-- Supports DDR4 2133/2400/2666MHZ

-- Dual Channel architecture support up to 32GB by 2 DIMM slots

Graphics

-- Integrated Graphics Prosessor

-- 1x HDM1 port

-- 1x VGA port

Audio Realtek ALC662 6 Channel Audio Codec
LAN Realtek 8105E/8111E 100M/1000M LAN Controller
Expansion Slots

-- 1x PCI Express X16 slot

-- 1x PCI Express X1 slot

I/O Connectors

-- 4x SATA3 6Gb/s connector

1x NVME- M.2 connector

-- 1x front panel connector

-- 1x front audio connector

-- 2x USB 2.0/1.1 connector; 2x USB 3.0 connector;4x USB 2.0/1.1 port;2x USB 2.0/1.1 port

-- 1x COM connector

-- 1x VGA port

-- 1x HDM1 port

-- 1x RJ-45 port

-- 1x audio jacks

Form Factor 210 x 170mm
Accessories 1x motherboard;1x SATA Cable;1x Mainboard Driver;1x baffle;1x User Manual


Quality Assurance:

To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.


PCWINMAX H510-Pro LGA 1200 M.2 DDR4 Slot Original H510 Chipset Micro ATX Motherboard Support 10th 11th Gen Processors 0

Our advantages:

Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.
