PCWINMAX Socket LGA 1150 B85 four Channel DDR3 Slot Micro ATX Desktop Computer Custom PC Motherboard
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | B85 |
| Minimum Order Quantity | 2 |
| Price | 36.99~40.99$ |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | SATA, DVI, VGA, PCI-Express X16, USB 2.0, PS2, Ethernet, USB 3.0, PCI-E 3.0, HD | CPU Type | Core I7/Core I5/Core I3 |
|---|---|---|---|
| Maximum Ram Capacity | 32 GB | Application | Desktop |
| Chipset Manufacturer | Intel B85 | Socket Type | LGA1150 |
| Form Factor | Micro ATX | Memory Type | DDR3 |
| Graphics Card Type | Integrated-need CPU Support | Hard Drive Interface | SATA |
| FSB / HT | 800/1066/1333/1600 MHz | Memory Channel | Double |
| Highlight | LGA 1150 PCWINMAX Motherboard,Custom PC PCWINMAX Motherboard,Micro ATX PCWINMAX Motherboard |
||
Product Description

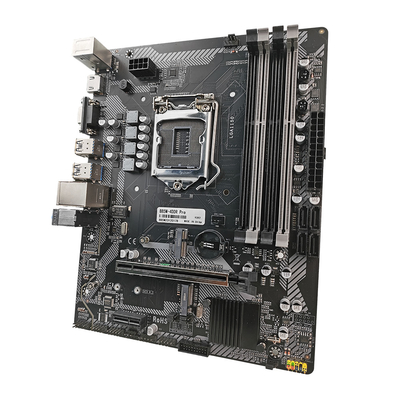

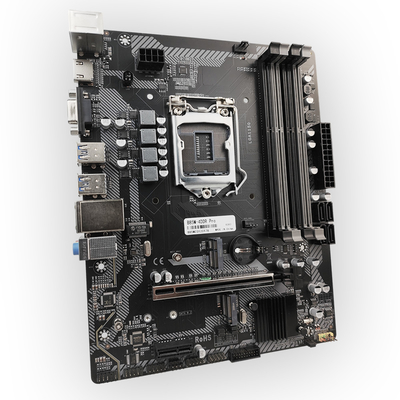

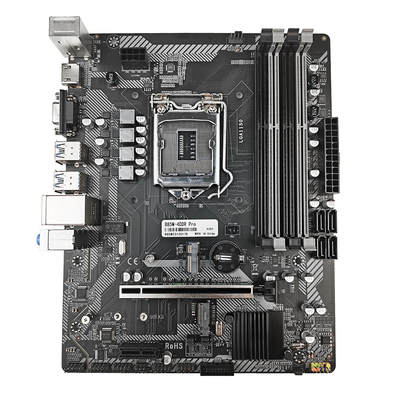

PCWINMAX Socket LGA 1150 B85 four Channel DDR3 Slot Micro ATX Desktop Computer Custom PC Motherboard
Description:
The B85 Motherboard is a reliable and versatile solution designed to meet the needs of both home and office users. Built on the Intel B85 chipset, this motherboard offers excellent performance, stability, and connectivity options for a wide range of computing tasks. Whether you're building a new system or upgrading an existing one, the B85 Motherboard provides a solid foundation for efficient and responsive performance.
Features:
1. **Intel B85 Chipset**: Optimized for Intel's 4th generation Core processors, delivering robust performance and stability.
2. **LGA 1150 Socket**: Compatible with a wide range of Intel Core i7, i5, i3, Pentium, and Celeron processors.
3. **DDR3 Memory Support**: Supports up to 32GB of DDR3 RAM, providing ample memory for multitasking and demanding applications.
4. **PCI Express 3.0**: Includes multiple PCIe slots for adding high-performance graphics cards and expansion cards.
5. **SATA III Ports**: Offers multiple SATA III ports for high-speed data transfer and support for SSDs and large storage drives.
6. **USB 3.0 Support**: Equipped with USB 3.0 ports for faster data transfer speeds and improved connectivity with modern peripherals.
7. **Integrated Graphics**: Supports Intel HD Graphics, allowing for high-definition video playback and casual gaming without the need for a dedicated graphics card.
8. **Realtek Gigabit LAN**: Provides reliable and fast network connectivity for seamless internet browsing and online gaming.
9. **High-Definition Audio**: Features integrated audio with support for 7.1-channel surround sound, delivering an immersive audio experience.
10. **Advanced BIOS Features**: Includes UEFI BIOS with intuitive interfaces and advanced features for easy system configuration and management.
Introduction:
|
Product Name
|
Inte1Original New B85 LGA1150 motherboard
|
|
Processor
|
Supports Inte1® i7/i5/i3/Pentium/Celeron processors in LGA1150
|
|
Chipset
|
Inte1® B85 Chipset
|
|
Memory Type
|
4*DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
|
|
Slots
|
1 PCI Express x16 slot, 1 PCI Express x1 slot
|
|

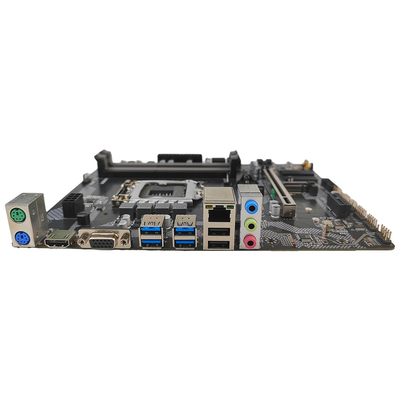

Back panel
|
1 PS/2 mouse/keyboard port, 1 VGA port, 1 HD port, 2*USB 3.0 ports,2*USB 2.0 ports, 1*1000MB LAN port, 3 audio jacks
|
|
On-Board connectors
|
1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports,1xUSB3.0, 1x SATA3
6GB/S,3 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header |
|
Audio
|
Realtek 662 3xAudio Jacks for 6 channel High definition audio
|
|
LAN
|
Supports Realtek Gigabit1000 Mbps Lan
|
|
Motherboard Type
|
Micro ATX
|
|
Size
|
215*170mm
|
Quality Assurance:
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
