PCWINMAX A520 AM4 Micro ATX Motherboard DDR4 Support M.2 USB 3.0 VGA HD Slot

Place of Origin CHINA
Brand Name PCWINMAX
Certification CE FCC
Model Number AM4 A520
Minimum Order Quantity 2
Price 35.99~37.99$
Delivery Time 3~7days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 piece 5 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chipset AMD A520 Chipset Expansion Slots SATA,PCI-Express X16,M.2
Form Factor Micro-ATX Max Memory 64GB
Memory Slots 2 Memory Type DDR4
Socket Type LGA 1151 Storage 4 X SATA3, 1 X M.2
Warranty 2 Years
Highlight

A520 AM4 Micro ATX Motherboard

,

LGA 1151 Micro ATX Motherboard

Leave a Message
Product Description

Product Description:

The PCWINMAX A520 Motherboard is a high-quality and reliable motherboard that offers exceptional performance and versatility for your computing needs. Designed to support the latest AMD processors, this motherboard provides a solid foundation for building a powerful and efficient system.



Features:

1.Powerful Performance: Equipped with the latest technology, the A520 delivers exceptional performance to handle demanding tasks and intense gaming sessions effortlessly.

2.Future-Proof Connectivity: Experience lightning-fast data transfer speeds with PCIe 4.0 support, ensuring seamless connectivity for high-speed storage devices and graphics cards.

3.Reliable Stability: Built with premium components and advanced circuit design, the A520 offers rock-solid stability, ensuring smooth operation even during extended usage.

4.Enhanced Audio Experience: Immerse yourself in superior sound quality with high-definition audio support, delivering crisp and immersive audio output for an enhanced entertainment experience.

5.Easy Customization: Customize your PC with ease using the user-friendly BIOS interface, allowing you to tweak settings, overclock, and personalize your system effortlessly.

6.Comprehensive Compatibility: With a wide range of compatibility options, the A520 supports the latest AMD processors, ensuring optimal performance and compatibility with various hardware components.



Parameter:



Chipset
AMD A520 chipset
Processor Support
Support 3rd Gen AMD Ryzen™ 1000/2000/3000/4000/5000Series Processors Support AMD AM4 Socket 1331 Processors
LAN
Onboard Realtek8111H 1000Mbps LAN
Memory Support
2 x DDR4 DIMM Slots,
Support DDR4 2400/2666/2800/3200MHZ
Max. to 64GB
(For more information on compatible components, please check with manufacturer)
Storage
4 x SATS 2.0 , Support AHCI
1 x M.2 Slot (Support 2242, 2280 M.2 SSD)
USB
6 x USB 3.0 ports(4 on the rear panel, 2 onboard pins)
4 x USB 2.0 ports(2 on the rear panel, 2 onboard pins)
Back pane
1 x Ps2 Port
1 x VGA Port
1 x HD Port
4 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x RJ45 Port
1 x Audio Jacks(Line In / Line Out / MIC In)
On-Board Pinheaders /Connectors
1 x USB3.0 Pinheader
1 x USB2.0 Pinheader
1 x Front-Panel Audio Pinheader
1 x Front-Panel Pinheader
1 x Fan Connector
1 x 24-Pin ATX Power Connector
1 x 8-Pin ATX
1 x CLR_COM Pinheader
1 x SPEAK Pinheader
Slots
1 x PCI Express x16 Slot
1 x PCI Express x1 Slot
Accessories
1 x 4-pin SATA data cable
1 x I/O Backboard
1 x User Manual
1 x Drives installed CD
Audio Interface
Realtek 6 channel HD audio

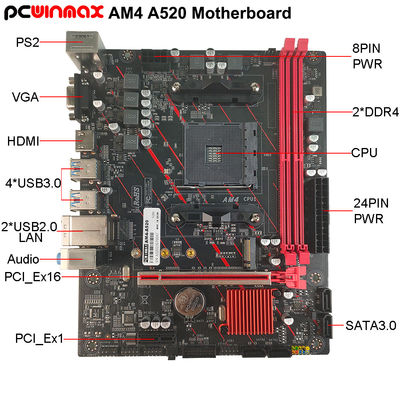

PCWINMAX A520 AM4 Micro ATX Motherboard DDR4 Support M.2 USB 3.0 VGA HD Slot 0PCWINMAX A520 AM4 Micro ATX Motherboard DDR4 Support M.2 USB 3.0 VGA HD Slot 1





Hot product:

PCWINMAX A520 AM4 Micro ATX Motherboard DDR4 Support M.2 USB 3.0 VGA HD Slot 2



Our advantages:


1. Original new card.
2. Support OEM&ODM,customization service.
3. We are the manufacturer, and the price will be the most favorable.
4. We deliver quickly, and deliver within 3~7 working days after placing an order.
5. Clients from 200+ nations.
6. Focus on this market 20 yeas, Our experience and profession will guarantee the purchase well





FAQ:



1. Product have warranty?
A: Yes, we provide after service. Please contact our professional after-sales service.

2. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
A: Graphics cards,motherboard,RAM,Solid State Drive,HDD,CPU.etc.

Q: What service do you have?
A: Provide samples.



We also provide daily price list service. Please consult the salesperson.
