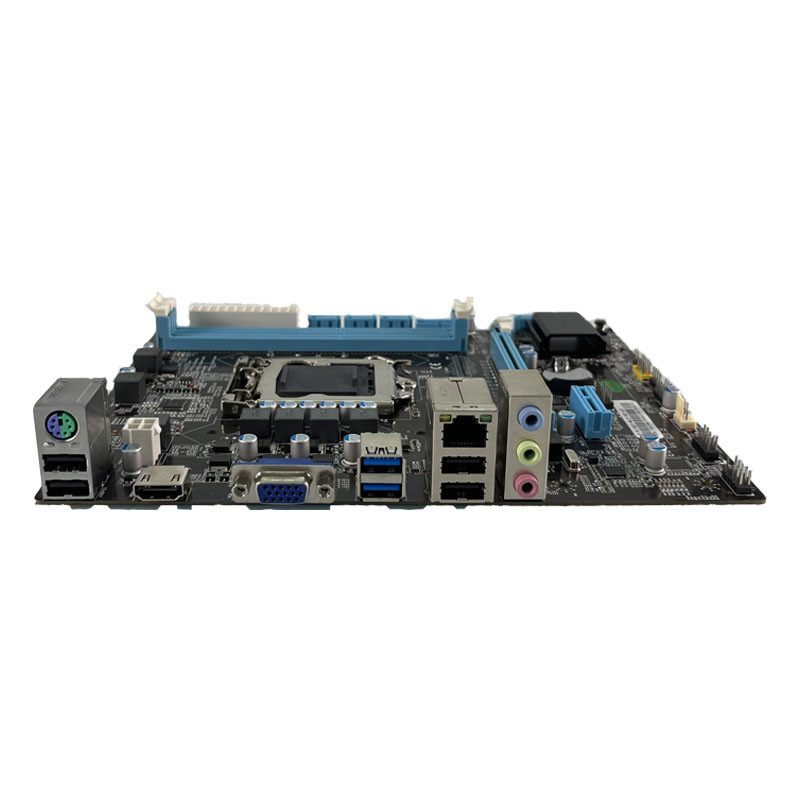

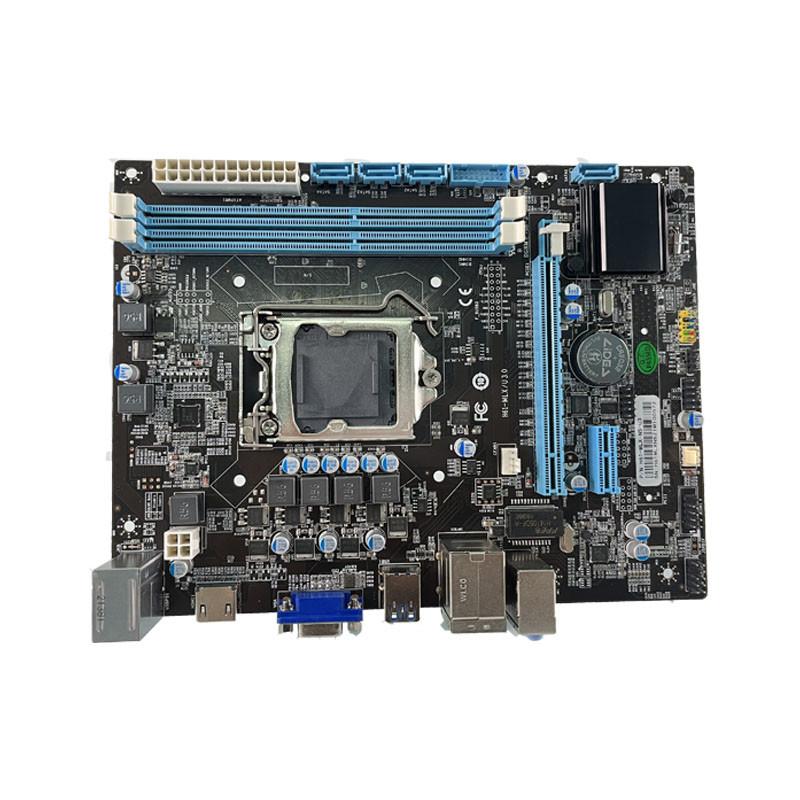

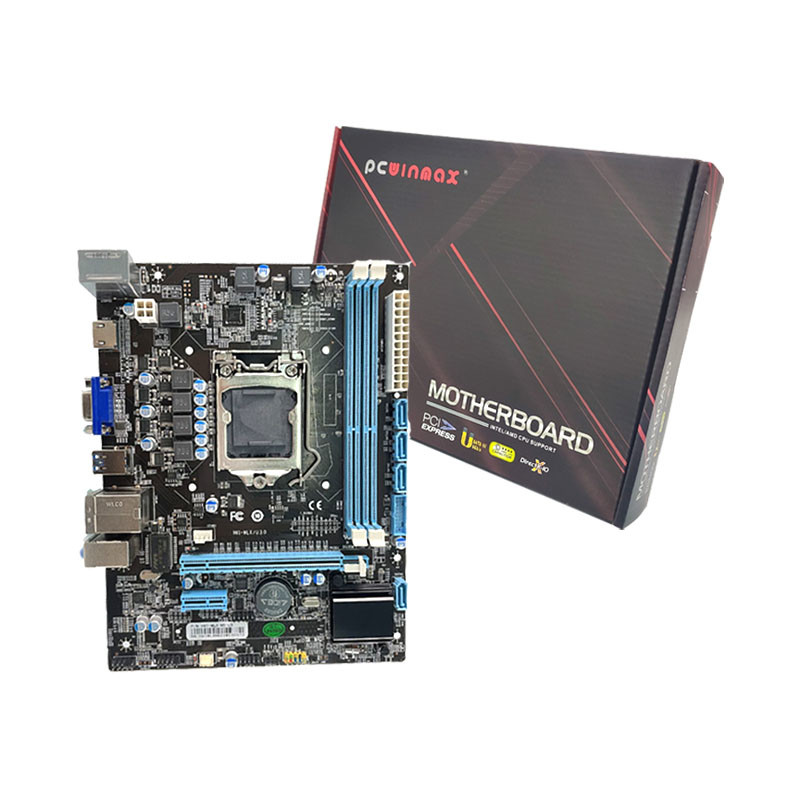

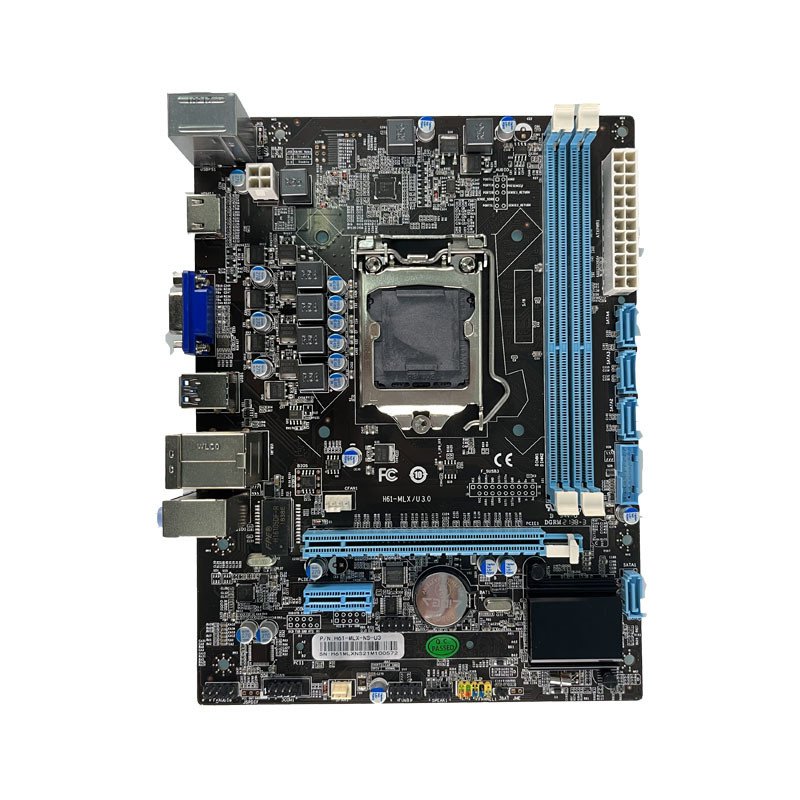

Integrated Motherboard H61 Socket 1155 Intel H61 Mainboard DDR4 DDR3
| Place of Origin | CHINA |
|---|---|
| Brand Name | pcwinmax |
| Certification | CE FCC ROHS |
| Model Number | h61 |
| Minimum Order Quantity | 2 |
| Price | 19.99~35.99$ |
| Delivery Time | 3~8 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 piece 7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Condition | New | Package | Yes |
|---|---|---|---|
| Ports | SATA, DVI, VGA, PS2 | Chipset | INTEL H61 |
| Maximum Ram Capacity | 8GB | Application | Desktop |
| Socket Type | LGA 1155 | Form Factor | ATX |
| Memory Type | DDR4, DDR3 | Graphics Card Type | Integrated |
| Hard Drive Interface | SATA | ||
| Highlight | intel h61 mainboard DDR4 DDR3,Integrated motherboard h61 socket 1155,motherboard h61 socket 1155 DDR4 DDR3 |
||
Product Description
INTEL H61 mainboard 1155 lga motherboard PC motherboard desktop
Product Description
The PCWINMAX H61 LGA1155 Motherboard is a high-quality micro ATX computer motherboard designed for LGA1155 socket processors, including the i3, i5, i7, Pentium, and Celeron series CPUs. With its reliable performance and compatibility, this motherboard is perfect for both gaming and everyday computing needs.
Features:
- LGA 1155 CPU Slot: This motherboard supports the LGA 1155 2nd Gen slot, making it compatible with a wide range of processors such as i3, i5, i7, Pentium, and Celeron series. It can handle powerful processors like the i7 2600k, i5 2500s, i5 2400s, i3 2130, and for Pentium G530/G630/G860, among others.
- Dual Channel DDR3: Featuring two slots for 8GB DDR3 Non ECC memory, this motherboard supports a standard active frequency of 1066/1333/1600MHz. With a maximum memory capacity of 16GB, you can experience smooth multitasking and efficient performance.
- M.2 NVMe NGFF: With a high-speed M.2 hard disk interface and a jumper wire configuration, this motherboard supports dual mode NVME NGFF. You have the flexibility to choose between high or low-speed PCIe hard disk switch and SATA2.0 channel, providing excellent storage options.
- 3 Phase Power: Designed with a 3 phase power supply and solid-state capacitor design, this micro ATX motherboard ensures stable operation of all its components. The 24+4pin power socket further enhances the reliability and longevity of the motherboard.
- HD VGA Output: Equipped with VGA and HD Multimedia Interface output options, this motherboard allows you to connect to different display devices. It also features a PCIe X16 graphics card slot, 1 PCIeX1 slot, 6 USB 2.0 ports, 3 SATA2.0 ports, and 1 M.2 hard disk interface for enhanced connectivity.
- Dual Channel DDR3: Featuring two slots for 8GB DDR3 Non ECC memory, this motherboard supports a standard active frequency of 1066/1333/1600MHz. With a maximum memory capacity of 16GB, you can experience smooth multitasking and efficient performance.
- M.2 NVMe NGFF: With a high-speed M.2 hard disk interface and a jumper wire configuration, this motherboard supports dual mode NVME NGFF. You have the flexibility to choose between high or low-speed PCIe hard disk switch and SATA2.0 channel, providing excellent storage options.
- 3 Phase Power: Designed with a 3 phase power supply and solid-state capacitor design, this micro ATX motherboard ensures stable operation of all its components. The 24+4pin power socket further enhances the reliability and longevity of the motherboard.
- HD VGA Output: Equipped with VGA and HD Multimedia Interface output options, this motherboard allows you to connect to different display devices. It also features a PCIe X16 graphics card slot, 1 PCIeX1 slot, 6 USB 2.0 ports, 3 SATA2.0 ports, and 1 M.2 hard disk interface for enhanced connectivity.
Parameter
|
Product Name |
Intel H61-A3C LGA1155 motherboard (Have PS/2 Port) |
|
Processor |
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors |
|
Chipset |
Intel® H61 Express Chipset |
|
Memory |
2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory, |
|
Slots |
- 1 * PCI Express x16 Slot |
|
Storage |
- 4 * Serial ATA 2.0 devices |
|
Internal I/O Connectors |
- 1 * 24-pin ATX Power Connector |
|
Back Panel I/O Ports |
- 1 * PS/2 Mouse & Keyboard |
|
Lan |
Realtek® GbE LAN Chip (10/100/1000 Mbit) |
|
Audio |
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out |
|
Size |
- Micro ATX (240*168 mm) |
|
|
|
|
Product Name |
Intel H61-BC LGA1155 motherboard(No PS/2 Port) |
|
Processor |
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors |
|
Chipset |
Intel® H61 Express Chipset |
|
Memory |
2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory, |
|
Slots |
- 1 * PCI Express x16 Slot |
|
Storage |
- 4 * Serial ATA 2.0 devices |
|
Internal I/O Connectors |
- 1 * 24-pin ATX Power Connector |
|
Back Panel I/O Ports |
- 1 * VGA |
|
Lan |
Realtek® GbE LAN Chip (10/100/1000 Mbit) |
|
Audio |
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out |
|
Size |
- Micro ATX (240*168 mm) |
