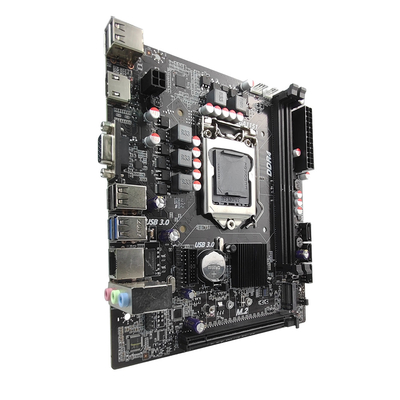

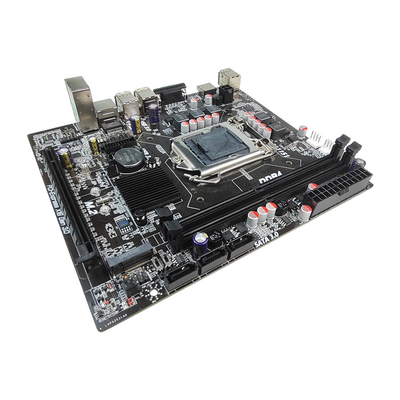

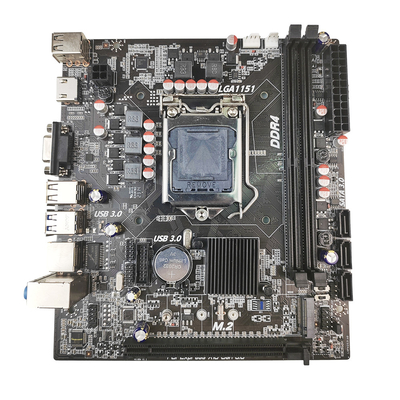

PCWINMAX H110 Desktop Motherboard DDR4 LGA 1151 Micro ATX H110 Mainboard for 6th 7th Gen i3 i5 i7

Place of Origin China
Brand Name PCWINMAX
Certification CE FCC
Model Number H110
Minimum Order Quantity 2
Price 45.99~55$
Delivery Time 3~7 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 piece 5days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ports Wifi, SATA, DVI, PCI-Express X16, USB 2.0, M.2, USB 3 CPU Type Core I7/Core I5/Core I3/Pentium/Celeron
Maximum Ram Capacity 32 GB Application Desktop/home/workstation
Chipset Manufacturer Intel Socket Type Socket 1151
Form Factor Micro ATX Memory Type DDR4
Graphics Card Type Integrated-need CPU Support Hard Drive Interface SATA
Highlight

LGA 1151 H110 Desktop Motherboard

,

Micro ATX H110 Desktop Motherboard

,

DDR4 Micro ATX H110 Mainboard

Leave a Message
Product Description

PCWINMAX H110 Desktop Motherboard DDR4 LGA 1151 Micro ATX H110 Mainboard for 6th 7th Gen i3 i5 i7​



Description:

The H110 Motherboard is a reliable and cost-effective solution designed for Intel's 6th and 7th generation Core processors. This motherboard provides essential features for everyday computing, making it an excellent choice for budget builds and basic home or office systems.



Features:

1. **Intel H110 Chipset**: Supports Intel 6th and 7th generation Core i3, i5, and i7 processors, delivering dependable performance for various applications.

2. **LGA 1151 Socket**: Facilitates easy installation of compatible CPUs, ensuring a straightforward setup process.

3. **Dual Channel DDR4 Memory Support**: Features two DIMM slots supporting up to 32GB of DDR4 RAM, enhancing multitasking capabilities and overall system performance.

4. **PCIe Expansion Slots**: Includes multiple PCIe slots for graphics cards and other expansion cards, allowing for customization and upgrades.

5. **USB 3.0 Connectivity**: Equipped with USB 3.0 ports for faster data transfer rates with compatible devices, improving overall connectivity.

6. **SATA III Support**: Supports SATA III for high-speed storage options, including SSDs and HDDs, ensuring quick boot times and file access.

7. **Integrated Audio and Networking**: Features onboard audio for quality sound and Gigabit Ethernet for stable network connections.



Parameter:

Processor (CPU)

Support for Inte® Core™ i7 processors/Inte® Core™ i5 processors/ Inte® Core™ i3 processors

/Inte® Pentium® processors/Intel® Celeron® processors in the LGA1151 package.

L3 cache varies with CPU.

Chipset
Inte® H110 Express Chipset
Memory

2 x 1.35V DDR4 DIMM Sockets Supporting up to 16 GB of System Memory,

Support for DDR4 2133/2400 MHz Memory Modules.

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Express x1 Slot
- 1 * PCI Slot

Storage
- 4 * Serial ATA 3.0 devices
Internal I/O Connectors

- 1 * 24-pin ATX Power Connector

- 1 * 4-pin ATX 12V Power Connector

- 2 * USB Connector Support Additional 4 USB Ports

- 1 * LPC_DEBUG Connector

- 1 * Front Panel Audio Connector

- 1 * System Panel Connector

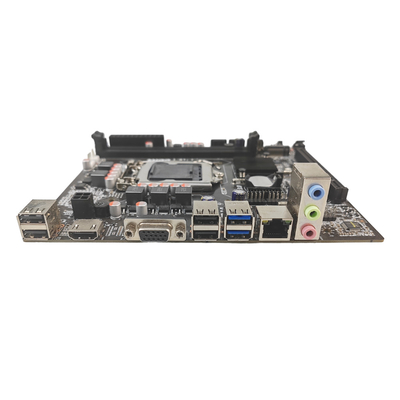

Back Panel I/O Ports

- 1 * PS/2 Mouse & Keyboard

- 1 * VGA

- 1 * HDIM

- 1 * LPT

- 2 * USB 3.0 and 2* USB 2.0

- 1 * LAN Port (RJ45)

- 3 * Audio Jacks

LAN
Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Form Factor
- Micro ATX (211*168 mm)
Accessories

- User Manual

- Drive CD

- I/O Panel



PCWINMAX H110 Desktop Motherboard DDR4 LGA 1151 Micro ATX H110 Mainboard for 6th 7th Gen i3 i5 i7 0PCWINMAX H110 Desktop Motherboard DDR4 LGA 1151 Micro ATX H110 Mainboard for 6th 7th Gen i3 i5 i7 1
