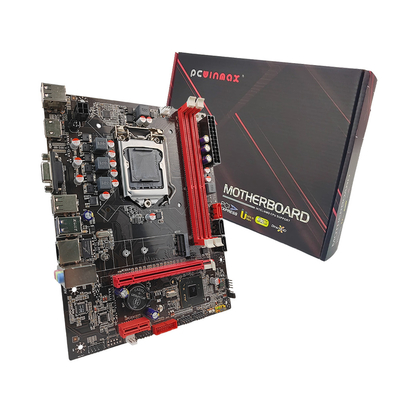

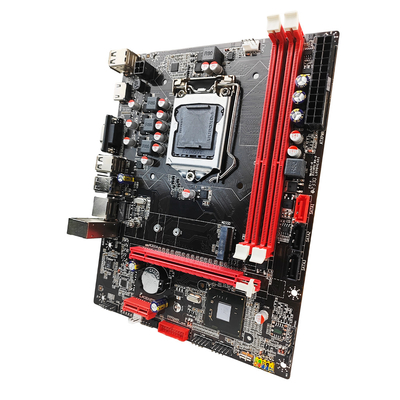

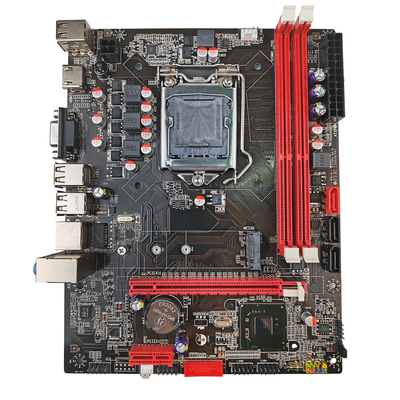

PCWINMAX B75 Micro ATX Motherboard LGA 1155 Support 2nd/3rd Gen I3 I5 I7 DDR3 OEM ODM Original B75 Mainboard
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | B75 |
| Minimum Order Quantity | 2 |
| Price | 15.99~25.99$ |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | SATA, VGA, PCI-Express X16, PCI-Express X8, USB 2.0, PS2,USB 2.0,HD | CPU Type | Core I7/Core I5/Core I3 |
|---|---|---|---|
| Maximum Ram Capacity | 16 GB | Application | Desktop |
| Chipset Manufacturer | Intel B75 | Socket Type | LGA1155 |
| Form Factor | Micro-ATX | Memory Type | DDR3 |
| Graphics Card Type | Integrated-need CPU Support | Hard Drive Interface | SATA |
| FSB / HT | 1066/1333/1600 MHz | ||
| Highlight | LGA 1155 Micro ATX Motherboard,B75 Micro ATX Motherboard,OEM ODM B75 Mainboard |
||
Product Description
PCWINMAX B75 Micro ATX Motherboard LGA 1155 Support 2nd/3rd Gen i3 i5 i7 DDR3 OEM ODM Original B75 Mainboard
Description
The B75 Motherboard is designed to provide a stable and efficient foundation for business and everyday computing needs. Built on the Intel B75 chipset, this motherboard offers robust performance, advanced features, and versatile connectivity options. Compatible with Intel’s 2nd and 3rd generation Core processors, the B75 motherboard supports efficient multitasking and smooth operation for a variety of applications.
Features:
1. **Intel B75 Chipset**: Provides a stable and efficient platform for Intel’s 2nd and 3rd generation Core processors, ensuring reliable performance.
2. **LGA 1155 Socket**: Compatible with a wide range of Intel Core i7, i5, i3, Pentium, and Celeron processors, offering flexibility for different builds.
3. **DDR3 Memory Support**: Supports up to 32GB of DDR3 RAM, providing adequate memory for multitasking and running demanding applications.
4. **PCI Express 3.0**: Includes PCIe 3.0 slots for adding graphics cards and other expansion cards, enhancing system capabilities.
5. **SATA III Ports**: Offers multiple SATA III ports for connecting hard drives and SSDs, ensuring fast data transfer rates and ample storage options.
6. **USB 3.0 Support**: Equipped with USB 3.0 ports for connecting peripherals such as keyboards, mice, and external drives with faster data transfer speeds.
7. **Integrated Graphics Support**: Utilizes Intel HD Graphics, allowing for high-definition video playback and basic gaming without a dedicated graphics card.
8. **Gigabit Ethernet**: Provides reliable and fast network connectivity for seamless internet browsing and online activities.
9. **High-Definition Audio**: Features integrated audio with support for multi-channel sound, delivering an immersive audio experience.
10. **Advanced BIOS Features**: Includes a user-friendly BIOS with advanced features for easy system configuration and management.
Parameter
|
Product Name
|
Original New B75 LGA1155 motherboard
|
|
Processor
|
Supports Inte® i7/i5/i3/Pentium/Celeron processors in LGA1155
|
|
Chipset
|
Inte® B75 Chipset
|
|
Memory Type
|
2*DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
|
|
Slots
|
1 PCI Express x16 slot, 1 PCI Express x1 slot
|
|

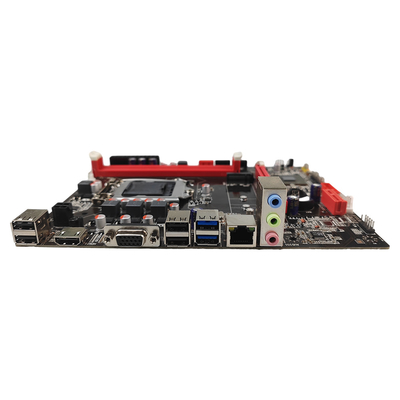

Back panel
|
1 PS/2 mouse/keyboard port, 1 VGA port, 1 HD port, 2*USB 3.0 ports,2*USB 2.0 ports, 1*1000MB LAN port, 3 audio jacks
|
|
On-Board connectors
|
1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports,1xUSB3.0, 1x SATA3
6GB/S,3 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header 1 x M.2
|
|
Audio
|
Realtek 662 3xAudio Jacks for 6 channel High definition audio
|
|
LAN
|
Supports Realtek Gigabit1000 Mbps Lan
|
|
Motherboard Type
|
Micro ATX
|
|
Size
|
24*17cm
|
Quality Assurance
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
