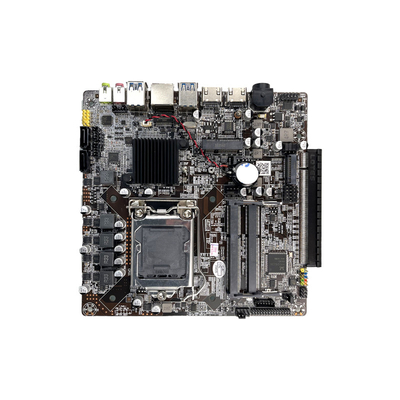

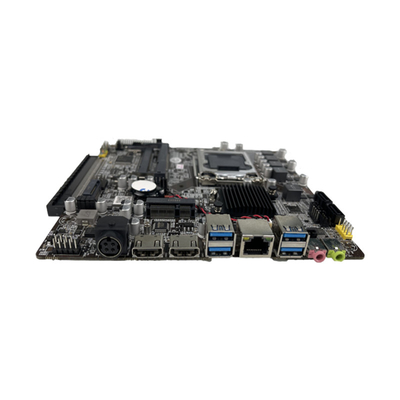

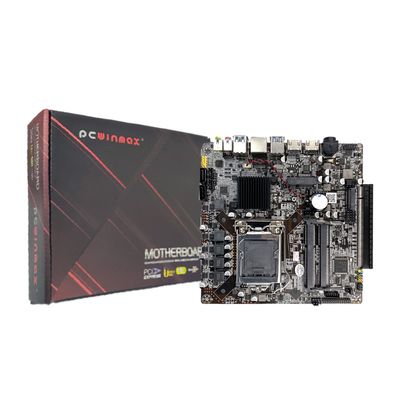

PCWINMAX Mini ITX H310 DDR4 LGA 1151 Original Chipset Support 8th 9th Gen CPU PCI-E x 16 Slot Mini PC Motherboard
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | H310 |
| Minimum Order Quantity | 2 |
| Price | 19.99~39.99$ |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | Wifi, SATA, VGA, USB 2.0, Ethernet, M.2, USB 3.0 | Maximum Ram Capacity | 32GB |
|---|---|---|---|
| Application | Server/Workstation | Chipset Manufacturer | Intel |
| Memory Bank | 2 DDR4 DIMM | Form Factor | Mini-ITX |
| Memory Type | DDR4 | Graphics Card Type | Integrated |
| Hard Drive Interface | SATA | FSB / HT | 3333MHz |
| Highlight | LGA 1151 Motherboard,H310 Mini PC Motherboard,Mini ITX H310 Motherboard |
||
Product Description
PCWINMAX Mini ITX H310 LGA 1151 Original Chipset Support 8th 9th Gen CPU PCI-E x 16 Slot Mini PC Motherboard
Description:
The PCWINMAX H310 Mini ITX Motherboard, a compact yet powerful foundation designed for versatile and efficient PC builds. Ideal for home theater PCs, compact gaming rigs, and small form factor workstations, this motherboard offers a perfect balance of performance, features, and size.
Built on the Intel H310 chipset, the H310 Mini ITX Motherboard supports 8th and 9th Generation Intel Core processors, delivering reliable performance for everyday computing tasks and more demanding applications. With support for up to 32GB of DDR4 memory, this motherboard ensures smooth multitasking and quick data access, enhancing your overall computing experience.
Features:
1. **Intel H310 Chipset**: Supports 8th and 9th Generation Intel Core processors for reliable performance.
2. **Compact Mini ITX Form Factor**: Perfect for building small and efficient systems.
3. **DDR4 Memory Support**: Up to 32GB for smooth multitasking and rapid data access.
4. **PCIe 3.0 x16 Slot**: Enables the installation of a dedicated graphics card for enhanced performance.
5. **M.2 NVMe SSD Support**: Provides fast boot times and quick application loading.
6. **Efficient Cooling Design**: Multiple fan headers and optimized layout for maintaining optimal temperatures.
7. **Multiple USB Ports**: USB 3.1 Gen 1 and USB 2.0 for versatile connectivity options.
8. **Gigabit Ethernet**: Ensures reliable and fast network connections.
9. **High-Definition Audio**: Delivers clear and immersive sound quality for an enhanced audio experience.
10. **HD and DisplayPort Outputs**: Supports dual-monitor setups for increased productivity.
11. **User-Friendly BIOS and Overclocking Tools**: Simplifies system customization and performance tuning.
Parameter:
| Item | mini itx h310 32gb 3333mhz |
|
chipset |
Intel® H31 Chipset
|
|
cpu
|
Intel® socket 1151 Chipset
|
|
Memory support
|
DDR4L SO-DIMM Max.32GB
|
|
LAN
|
Realtek RTL 8105E 100 Mbps
|
|
storage
|
2* SATA3.0 port(s)
|
|
audio
|
Integrated Realtek ALC662 chip Flexible 5.1 channel audio output
|
|
USB
|
1 * DC-IN port 1 *VGA port
1 * HD port4 *USB 3.0 Ports
1* LAN jack 1* Line out jack
1 * Mic jack
|
|
On-Board
Pinheaders/
Connectors
|
2 * USB 2.0 pinheaders 1 * COM pinheader
1 * LVDS_ CON pinheader 1 * LVDS_ ON/OFF pinheader
1* LCD_ _VOT_ SEL pinheader 1 * INVER_ VOT_ SEL pinheader
1 * AUTO_ PWR pinheader 1 * BKL_ PWN_ SEL pinheader
1 * DISPLAY_ BRT pinheader 2 * CPU/SYS_ FAN pinheaders
1 * 4PIN 12V Power-in Connector 2 * HDD_ PWR Connectors
1*F_ Audio pinheader 1*F_ Panel pinheader
1 * Speaker pinheader1 * DEBUG pinheader
|
|
Expansion Slots
|
1 * Mini PCI slot
|
|
Form Factor
|
Micro ATX (17*17 cm)
|
|
Mounting
|
4*mounting holes
|
|
Accessories
|
2 * SATA data cable (optional) 1* 1/O Backboard
1* User Manual 1* Drives installed CD
|
Quality Assurance:
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
