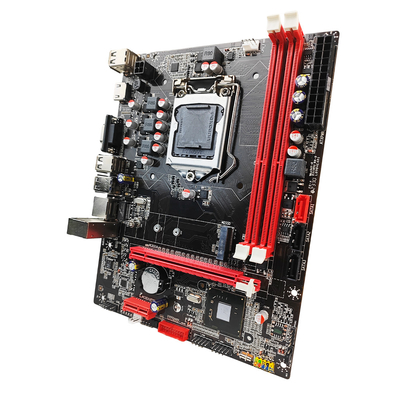

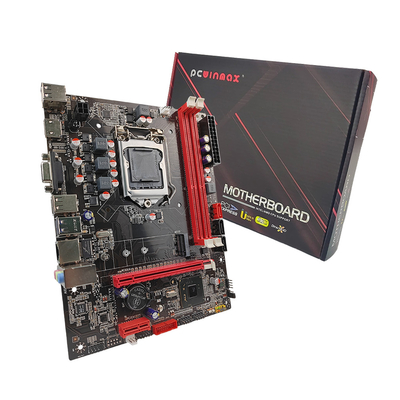

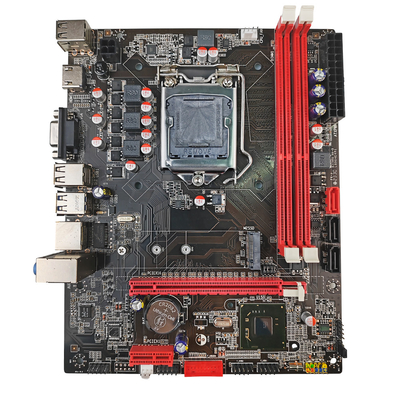

PCWINMAX B75M2-Plus LGA 1155 Gaming Desktop Micro ATX Motherboard DDR3 Support I3 I5 I7 B75
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | B75 |
| Minimum Order Quantity | 2 |
| Price | 16.8~20USD |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | SATA, VGA, PCI-Express X16, PCI-Express X8, USB 2.0, PS2,USB 2.0,HD | CPU Type | Core I7/Core I5/Core I3 |
|---|---|---|---|
| Maximum Ram Capacity | 16 GB | Application | Desktop |
| Chipset Manufacturer | Intel B75 | Socket Type | LGA1155 |
| Form Factor | Micro-ATX | Memory Type | DDR3 |
| Graphics Card Type | Integrated-need CPU Support | Hard Drive Interface | SATA |
| FSB / HT | 1066/1333/1600 MHz | ||
| High Light | Micro ATX Motherboard DDR3,B75 Gaming Desktop Motherboard,LGA 1155 Gaming Desktop Motherboard |
||
Product Description
Mainboard Gaming Motherboard B75 LGA 1155 Motherboard DDR3 8gb Ram Dual Channels Usb 3.0 Port
Description
The PCWINMAX B75 M ATX Desktop Motherboard is the perfect choice for all your computing needs. This motherboard is designed to support the LGA 1155 pin CPU and is equipped with 2X DDR3 RAM slots, allowing you to enhance your system's performance with up to 1600/1333/1066 MHz memory modules. With a built-in PCI EX16 graphics card slot, you can enjoy enhanced visuals and smooth gameplay.
Features:
- Gigabit Ethernet: Enjoy high-quality and stable transmission with the built-in Gigabit Ethernet feature.
- 6-channel Sound Card: Immerse yourself in superior audio quality with the integrated 6-channel sound card.
- M.2 High-Speed Hard Disk Interface: Take advantage of the lightning-fast data transfer rates offered by the M.2 interface.
- Round Keyboard (PS/2 Port): Add a touch of elegance to your desktop with the round keyboard support.
- Front and Rear Dual USB 3.0 Ports: Easily connect USB devices to the front or rear of your desktop without any hassle.
- SATA3.0 Hard Disk Transfer Rate Support: Enhance your storage performance with the support for SATA3.0 transfer rates.
Parameter
|
Product Name
|
Original New B75 LGA1155 motherboard
|
|
Processor
|
Supports Inte® i7/i5/i3/Pentium/Celeron processors in LGA1155
|
|
Chipset
|
Inte® B75 Chipset
|
|
Memory Type
|
2*DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
|
|
Slots
|
1 PCI Express x16 slot, 1 PCI Express x1 slot
|
|
Back panel
|

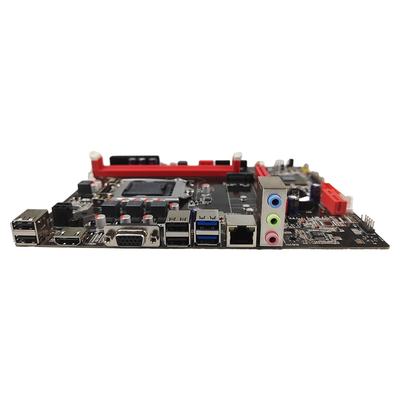

1 PS/2 mouse/keyboard port, 1 VGA port, 1 HD port, 2*USB 3.0 ports,2*USB 2.0 ports, 1*1000MB LAN port, 3 audio jacks
|
|
On-Board connectors
|
1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports,1xUSB3.0, 1x SATA3
6GB/S,3 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header 1 x M.2
|
|
Audio
|
Realtek 662 3xAudio Jacks for 6 channel High definition audio
|
|
LAN
|
Supports Realtek Gigabit1000 Mbps Lan
|
|
Motherboard Type
|
Micro ATX
|
|
Size
|
24*17cm
|
Quality Assurance
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
