PCWINMAX B85 Pro LGA 1150 Gaming Motherboard 4 X DDR3 Slot Support 4th Gen Intel Core I7 I5 I3
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | B85 |
| Minimum Order Quantity | 2 |
| Price | 36.99~40.99$ |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | SATA, DVI, VGA, PCI-Express X16, USB 2.0, PS2, Ethernet, USB 3.0, PCI-E 3.0, HD | CPU Type | Core I7/Core I5/Core I3 |
|---|---|---|---|
| Maximum Ram Capacity | 32 GB | Application | Desktop |
| Chipset Manufacturer | Intel B85 | Socket Type | LGA1150 |
| Form Factor | Micro ATX | Memory Type | DDR3 |
| Graphics Card Type | Integrated-need CPU Support | Hard Drive Interface | SATA |
| FSB / HT | 800/1066/1333/1600 MHz | Memory Channel | Double |
| Highlight | B85 Pro Gaming Motherboard,LGA 1500 Gaming Motherboard,4 x DDR3 B85 Pro Gaming Motherboard |
||
Product Description

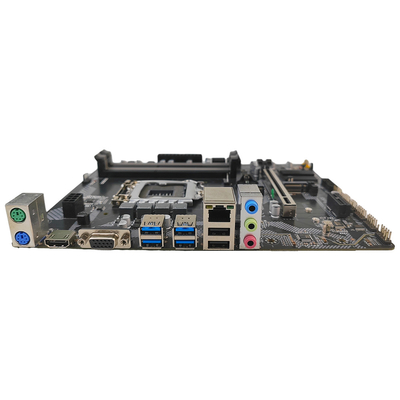

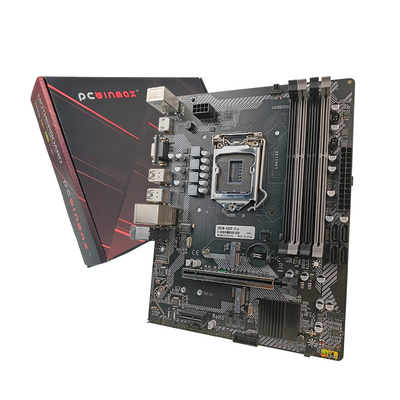

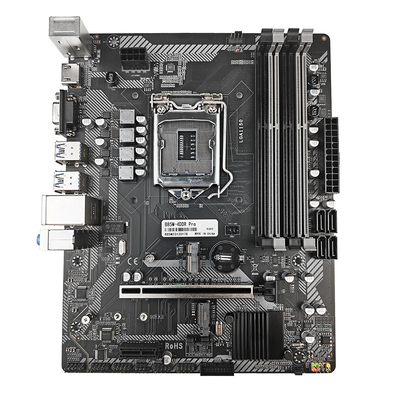

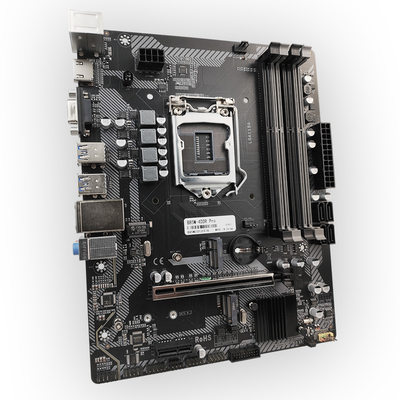

PCWINMAX B85 Pro LGA 1150 Gaming Motherboard 4 x DDR3 Slot Support 4th Gen Intel Core i7 i5 i3 Mainboard
Description:
The PCWINMAX B85 PRO LGA 1150 Motherboard is designed to support 4th generation Intel Core i7, i5, i3, Pentium, Celeron, and E3 processors with its LGA 1150 CPU socket. This gaming motherboard offers high compatibility and brings a superior gaming and office experience. With its high-quality construction and advanced features, it is perfect for meeting your office, entertainment, and gaming needs.
Features:
- LGA 1150 Motherboard: This gaming motherboard supports Intel 4th gen processors with an LGA 1150 CPU socket, including popular models such as the i5 4570, i5 4690k, i7 4790, and i7 4790k.
- Four-channel DDR3: The motherboard supports four-channel DDR3 memory with a maximum capacity of 32GB, allowing for smooth multitasking and enhanced performance.
- High-speed Interface: Equipped with M.2 protocol support and automatic switching between NVME and SATA modes, this motherboard offers high-speed data transfer capabilities. It features 1 PCIe x16 3.0, 1 PCIe x1 2.0, and 4 SATA 3.0 interfaces for versatile connectivity options.
- High-definition Display Interface: The motherboard comes with VGA and HD-compatible high-definition multimedia transmission interfaces, ensuring crystal-clear visuals with a transmission rate of up to 48Gbp/s.
- Ultimate Network Speed: With its RJ45 gigabit network interface and RTL8111K network card chip, this motherboard provides a maximum network transmission rate of 1000bps/s, delivering fast and seamless online gaming experiences.
- Stable Power Supply: The 4-phase power supply and all-solid-state capacitor design guarantee professional stability. The motherboard is equipped with a 24+8 pin power interface, requiring a minimum 500W brand power supply for optimal performance.
- High-quality Motherboard: Featuring the B85 chipset and an 8-layer PCB design, this motherboard offers superior longevity and efficient heat dissipation. The heat dissipation armor protection ensures stable bus communication, contributing to reliable performance.
Introduction:
|
Product Name
|
Inte1Original New B85 LGA1150 motherboard
|
|
Processor
|
Supports Inte1® i7/i5/i3/Pentium/Celeron processors in LGA1150
|
|
Chipset
|
Inte1® B85 Chipset
|
|
Memory Type
|
4*DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
|
|
Slots
|
1 PCI Express x16 slot, 1 PCI Express x1 slot
|
|
Back panel
|
1 PS/2 mouse/keyboard port, 1 VGA port, 1 HD port, 2*USB 3.0 ports,2*USB 2.0 ports, 1*1000MB LAN port, 3 audio jacks
|
|
On-Board connectors
|
1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports,1xUSB3.0, 1x SATA3
6GB/S,3 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header |
|
Audio
|
Realtek 662 3xAudio Jacks for 6 channel High definition audio
|
|
LAN
|
Supports Realtek Gigabit1000 Mbps Lan
|
|
Motherboard Type
|
Micro ATX
|
|
Size
|
215*170mm
|
