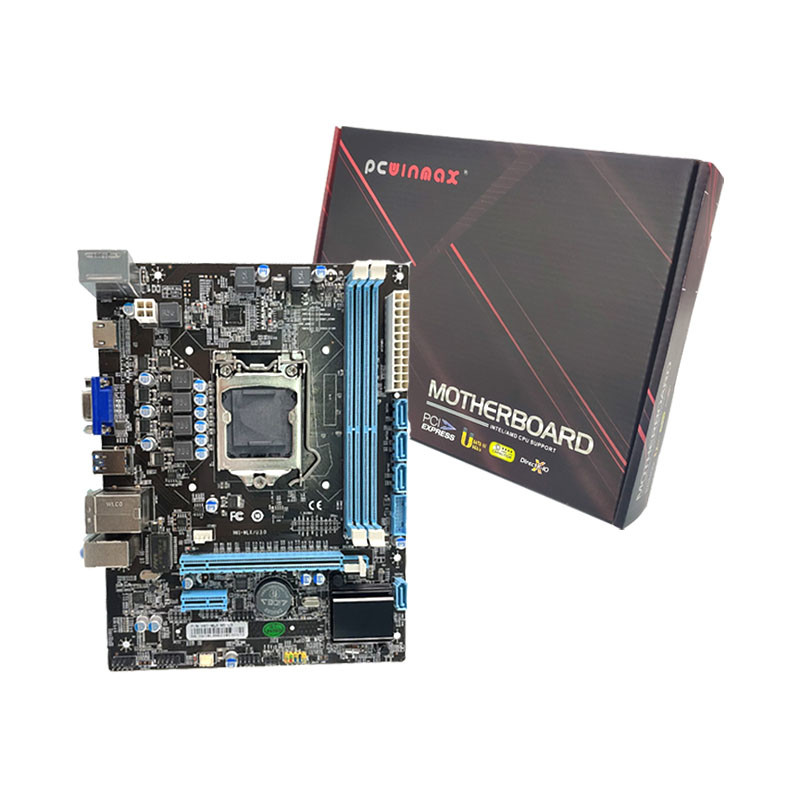

Intel H61-A3C LGA1155 Motherboard PCIE H61 H81 H110 H310 H410 H510
| Place of Origin | China |
|---|---|
| Brand Name | PCWINMAX |
| Certification | CE FCC |
| Model Number | Various Models Motherboard |
| Minimum Order Quantity | 2 |
| Price | 29.99~69.99$ |
| Delivery Time | 3~7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 piece 5days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ports | SATA,PCI-Express X16 | Maximum Ram Capacity | 32GB 128GB |
|---|---|---|---|
| Application | Desktop/home/workstation | Chipset Manufacturer | Intel |
| Socket Type | LGA2011 | Form Factor | Micro-ATX |
| Memory Type | 4 DDR4 | Graphics Card Type | Integrated-need CPU Support |
| Highlight | Intel H61-A3C LGA1155 motherboard,LGA1155 motherboard PCIE,LGA1155 motherboard H61 H81 |
||
Product Description
Lga 1155 Motherboard Various Models For Gaming Computer PCIE H61 H81 H110 H310 H410 H510
Introduction:
|
Product Name
|
Intel H61-A3C LGA1155 motherboard (Have PS/2 Port)
|
|
Processor
|
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors
/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package. L3 cache varies with CPU. |
|
Chipset
|
Intel® H61 Express Chipset
|
|
Memory
|
2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory,
Support for DDR3 1600/1333 MHz Memory Modules. |
|
Slots
|
- 1 * PCI Express x16 Slot
- 1 * PCI Express x1 Slot |
|
Storage
|
- 4 * Serial ATA 2.0 devices
|
|
Internal I/O Connectors
|
- 1 * 24-pin ATX Power Connector
- 1 * 4-pin ATX 12V Power Connector - 2 * USB Connector Support Additional 4 USB Ports - 1 * Front Panel Audio Connector - 1 * System Panel Connector |
|
Back Panel I/O Ports
|
- 1 * PS/2 Mouse & Keyboard
- 1 * VGA - 1 * HDM1 - 4 * USB 2.0 - 1 * LAN Port (RJ45) - 3 * Audio Jacks |
|
Lan
|
Realtek® GbE LAN Chip (10/100/1000 Mbit)
|
|
Audio
|
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
|
|
Size
|
- Micro ATX (240*168 mm)
|
|
|
|
|
Product Name
|
Intel H61-BC LGA1155 motherboard(No PS/2 Port)
|
|
Processor
|
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors
/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package. L3 cache varies with CPU. |
|
Chipset
|
Intel® H61 Express Chipset
|
|
Memory
|
2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory,
Support for DDR3 1600/1333 MHz Memory Modules. |
|
Slots
|
- 1 * PCI Express x16 Slot
- 1 * PCI Express x1 Slot |
|
Storage
|
- 4 * Serial ATA 2.0 devices
|
|
Internal I/O Connectors
|
- 1 * 24-pin ATX Power Connector
- 1 * 4-pin ATX 12V Power Connector - 2 * USB Connector Support Additional 4 USB Ports - 1 * Front Panel Audio Connector - 1 * System Panel Connector |
|
Back Panel I/O Ports
|
- 1 * VGA
- 1 * HDM1 - 4 * USB 2.0 - 1 * LAN Port (RJ45) - 3 * Audio Jacks |
|
Lan
|
Realtek® GbE LAN Chip (10/100/1000 Mbit)
|
|
Audio
|
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
|
|
Size
|
- Micro ATX (240*168 mm)
|
|
|
|
|
Product Name
|
Intel B75 LGA1155 motherboard (Have PS/2 Port,Support usb3.0)
|
|
Processor
|
Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
|
|
Chipset
|
Intel® B75 Chipset
|
|
Memory Type
|
2*DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
|
|
Slots
|
1 PCI Express x16 slot,
1 PCI Express x1 slot
|
|
Back panel
|
1 PS/2 mouse/keyboard port
1 VGA port
1 HDM1 port
2*USB 3.0 ports
2*USB 2.0 ports
1*1000MB LAN port
3 audio jacks
|
|
On-Board connectors
|
1 x Front panel connector
1 x speaker connector
1 x Front panel audio connector (2 x 5pin)
4 x USB 2.0 ports
1xUSB3.0
1x SATA3 6GB/S
3 x SATA 3Gb/s (SATAII) ports
1 x 4pin CPU fan connector
1 x SYS fan connector
1 x 24-pin ATX power connector
1 x 4-pinATX 12V power connector
1 x 3pin clear CMOS header
|
|
Audio
|
Realtek 662 3xAudio Jacks for 6 channel High definition audio
|
|
LAN
|
Supports Realtek Gigabit1000 Mbps Lan
|
|
Size
|
Micro ATX (240*168 mm)
|
